Main Features

  • Intel Celeron N3160 2.24GHz Quad-Core fanless, 4GB DDR3
  • 2 x GigaLAN / 4 x USB 2.0 / 3 x USB 3.0
  • VGA / DP / HD triple display
  • 2/4x RS232, 2x RS232/422/485
  • 1x Digital I/O terminal block, 1x Line-out
  • MiniPCIe Socket + SIM
  • PCI and PCIe slot
  • CFast Adapter
  • HDD Space S-ATA
  • 12-24V DC terminal block
  • Dimensions: 190mm x 240mm x 105mm


EmRunner 5639, embedded system based on Intel Celeron N3160 quad core CPU, with expansion slots New




EmRunner 5639

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

EmRunner 5639, embedded system based on Intel Celeron N3160 quad core CPU, with expansion slots
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The Intel® Celeron Braswell N3160 processor enables the EmRunner 5639 to deliver flexibility and computing power. Versatile graphics, large DDR3 memory, plenty of high-speed interfaces plus expandability by multiple slots for add-on cards allowing for versatile usage. MS Windows 7/8/10 and Linux are supported.

Computing Performance

The Intel® Core™ Celeron Braswell N3160 (4 cores at 1.6GHz with Turbo Boost at 2.24GHz) combined with up to 8GB high speed DDR3 memory assemble an affordable powerhouse for demanding industrial applications.

Graphic Flexibility

The on-processor graphic unit supports up to 3 displays simultaneously (1x DP , 1x VGA port plus 1x HD connector). Freedom to decide which type of display to connect.

Rich Connectivity and Expansion

The connectivity includes 2x GbE LAN ports, 4x COM ports (plus 2 optional), and 1x (front accessible) CFast socket. One Integrated Mini-PCIe slot can accommodate WLAN or 3G/4G-Modem cards. Fast serial interfaces like 3x USB 3.0 and 4x USB 2.0 plus 2x PCI/PCIe slots facilitate the flexible expansion of system's capabilities.
12-24V DC input power supply and ruggedized compact aluminium housing recommended for deployment in harsh industrial environments. A suitable power adapter is included in the shipment.

  System

CPU

Intel Celeron Braswell N3160 Quad Core processor, 1.6GHz, Turbo Boost 2.24GHz

Chipset

integrated in Intel N3160

Memory

4GB DDR3L (8GB max.)
2x 204-pin SO-DIMM

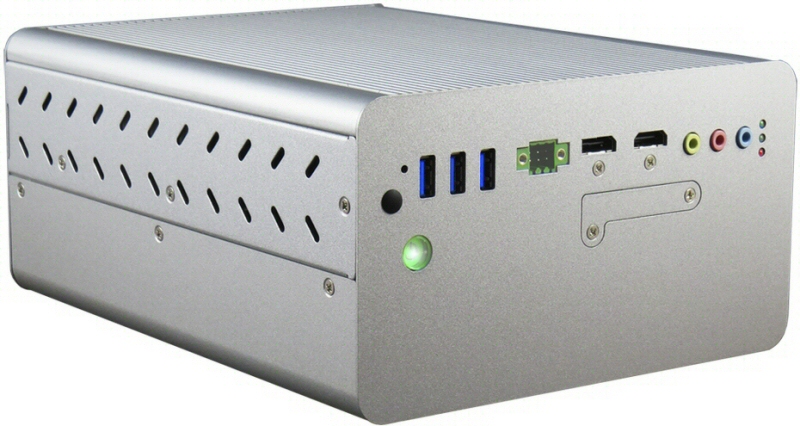

I/O Interface Front

  • 3x USB 3.0 ports
  • 1x DP and 1x HD display port
  • 1x CFast socket
  • 1x Mic-in & 1x Line-out & 1x Speaker
  • ATX power on/off switch
  • HDD access/power status LEDs
  • Digital-I/O terminal block

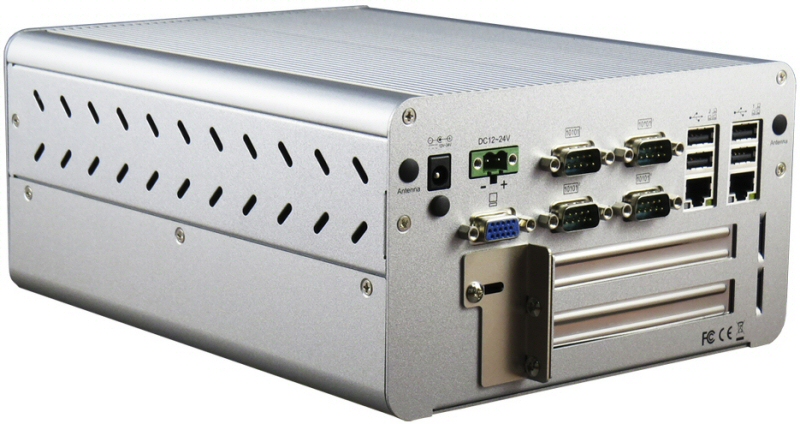

I/O Interface Rear

  • 2x GbE LAN ports
  • 4x USB 2.0 ports
  • 1x VGA port
  • 2x serial port RS232 and 2x RS232/422/485
  • 12-24V DC power input
  • 2x antenna holes
  • 2x expansion slots PCI/PCIe

>Back to top

  Storage

HDD/SSD

1x 2.5" SSD space (SATA 3)

Flash

1x external CFast socket (SATA 3)

>Back to top

  Expansion Options

Expansion slot

Special Slot

  • 1 x miniPCIe for Wifi/3G/4G
Standard Slots
  • 1x PCIe x1 plus 1x PCI or
  • 2x PCI

>Back to top

  Supported OS

Microsoft

Windows 7 / 8 / 10

Linux

Kernel 3.8 and later

>Back to top

  Power Requirements

Input Voltage

12-24V DC on-board power support

Power Supply

AC to DC power adapter, 19V (65W)

Connector

  • 2-pin Terminal Block
  • Round Jack

>Back to top

  Housing and Mounting

Case

Aluminum and Metal Chassis with fanless design

Weight

Gross Weight: 3.7kg

Dimensions

190x 240x 105mm

Mounting

Wall Mount

>Back to top

  Environment

Operating Temp.

−20°C - 55°C

Storage Temp.

−30°C – 85°C

Ambient Humidity

10-95% non condensing

>Back to top

  Standards

Certifications

CE, FCC Class A

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

2260

EmRunner 5639

>Back to top

  Options

Mass Storage device

  • 2.5" HDD SATA
  • 2.5" SSD SATA
  • CFast Card

Expansion variant

2x PCI slots replaces PCI/PCIe x1 combo

Expansion bracket

2x RS232

Expansion bracket

1x RS232 plus 1x LPT

>Back to top

  Packaging

Packing list

  • EmRunner 5639 Embedded System
  • (incl. 4GB DDR3L RAM)
  • Power Adapter
  • Driver CD, English documentation

>Back to top
