>visionsystems.de/Nport 6650-16 (4719)


Main Features

  • Easy-to-use LCM (Liquid Crystal Module) interface for IP address configuration
  • Versatile socket operating modes, including TCP Server, TCP Client, UDP, Pair Connection, Real COM driver and RCF2217
  • Secure Ethernet Data mode for TCP Server, TCP Client, Pair connection and Real COM driver
  • Any Baudrate mode for more precise baudrates
  • One 10/100BaseTx Ethernet port with 802.3af Power Over Ethernet
  • Port buffering prevents serial data loss when Ethernet is off-line
  • Uses SD card to increase port buffering size
  • Network module socket for network expansion


Nport 6650-16




Nport 6650-16

Quick Link: | Main Features | More Pictures | Overview | Hardware | Interface | Performance | Configuration | Power and Environment | Operating Systems supported | Safety | Ordering Information | Optional Accessories | Download |

|

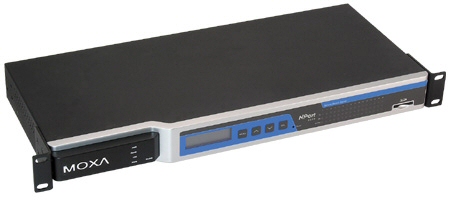

  More Pictures

Nport 6650-16
Click on the thumbnails to enlarge them …

>Back to top

  Overview

NPort 6000 series secure serial device servers deliver a more reliable serial-to-Ethernet connectivity. NPort 6000 series secure serial device servers can be used to connect any serial device to an Ethernet network and provide TCP Server, TCP Client, UDP and Pair Connection modes to ensure the compatibility of network software. NPort 6000 series secure serial device servers also support Secure TCP Server, Secure TCP Client, Secure Pair Connection and Secure Real COM mode for security critical applications such as banking, telecom, access control and remote site management. All NPort 6000 series device servers support the 802.3af POE standard and can be powered over the Ethernet port.

  Hardware

Connector type

RJ45 (8-pin)

>Back to top

  Interface

LAN interface

Auto-detecting 10BaseT/100BaseT

Protocols

ICMP,IP,TCP,UDP,DHCP,BOOTP,Telnet,Rtelnet,
DNS,SNMP,HTTP,SMTP,SNTP,ARP,SSH,SSL

Serial interface

RS232/422/485

No. of port

16

Signals

RS232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND
RS485 Data+/-, GND

>Back to top

  Performance

Speed

50 bps - 921.6Kbps

Max. no. of ports

256 per Windows NT/2000/XP, 128 per Windows 95/98/ME

Flow Control

RTS/CTS, Xon/Xoff

>Back to top

  Configuration

Parity

None, even, odd, space, mark

Data bits

5, 6, 7, 8

Stop bits

1, 1.5, 2

IRQ

Nil

I/O address

Nil

Server Configuration

HTTP
HTTPs
Serial console
Telnet console
SSH

>Back to top

  Power and Environment

Operation temp.

0°C - 55°C

Surge Protection

15kV ESD

Power requirements

Power input 12 to 48V DC

Special

  • RS485 Automatic Data Direction Control ADDC
  • Built-in Buzzer
  • Built-in Real time clock
  • Built-in Watch dog

>Back to top

  Operating Systems supported

Real Com Drivers

WIN95/98/ME/NT/2K/XP/2003/Vista

Real TTY Drivers

for Linux

Utilities

Nport Administrator for Win95/98/ME/NT/2K/XP/2003/Vista

Dimension

440(w)x195(d)x44(h)

>Back to top

  Safety

EMC

FCC Class A, CE Class A
UL, TÜV

>Back to top

  Ordering Information

Part Number

4719

Product Name

Nport 6650-16

Packing list

NPort 6650 Secure Serial Device Server
Quick Installation Guide
NPort Document and Software CD-ROM
Power Cord

>Back to top

  Optional Accessories

CBL-RJ45M9-150

Connection Cable RJ45 (8 pin) to DB9 male

CBL-RJ45M25-150

Connection Cable RJ45 (8 pin) to DB25 male

CBL-RJ45F9-150

Connection Cable RJ45 (8 pin) to DB9 female

CBL-RJ45F25-150

Connection Cable RJ45 (8 pin) to DB25 female

>Back to top

Download


 (Version 1.13 Aug. 16th 2010)
 (Version 1.17 Aug. 16th 2010)
 (Version 1.2 Aug. 16th 2010)
 (Version 3.4 Aug. 16th 2010)
 (Version 3.5 Jul. 9th 2008)
>Back to top

* Specifications are subject to change without notice.
