>visionsystems.de/TaskRunner 105-E3845 (NISE 105-E3845) (3616)


Main Features

  • Intel Atom E3845 Quad Core 1.91GHz fanless
  • 4GB DDR3L
  • 2x GbE LAN, 2x USB 2.0 / 1x USB 3.0
  • 2x RS232, 2x RS232/422/485
  • 1x DVI-I, 1x HDMI dual independent Displays
  • Operating temperature: -5°C – 55°C
  • external Cfast socket / HDD Space
  • miniPCIe Socket + SIM
  • Power Input 9V-30V


TaskRunner 105-E3845, NISE 105-E3845, embedded system based on Intel Atom E3845 quad core CPU




TaskRunner 105-E3845 (NISE 105-E3845)

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

TaskRunner 105-E3845, NISE 105-E3845, embedded system based on Intel Atom E3845 quad core CPU
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Powered by the late generation of Intel® Atom™ processor E3845 (also known as "Bay Trail-I"), the TaskRunner 105-E3845 industrial fanless computer features the 64-Bit Instruction Set and Intel® HD Graphics. Large DDR3L memory, plenty of high-speed interfaces as well as its small mechanical design well suited for compact performance applications, such as Factory Automation Applications, Network Applications and Communication Applications. Windows 7/10 IoT and Linux are supported.

Computing Performance

The Intel® Atom™ CPUs (4 cores at 1.91GHz) combined with up to 8GB high speed DDR3L memory assembles an affordable system for compact demanding industrial applications.

Graphic Performance

The on-processor graphic unit provides 1x HDMI port and 1x DVI-I port enabling up to 2 independent displays simultaneously. Two digital or one digital plus one analogous display (VGA via DVI-I) are possible.

Rich Connectivity and Expansion

The connectivity includes 2x GbE LAN ports, 4x COM ports, 1x CFast / 1x SIM card holder, 1x USB 3.0 and 2x USB 2.0. One integrated Mini-PCIe slot can accommodate WLAN or 3G/4G-Modem card.
Power input 9-30V DC, wide temperature operating range and ruggerized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

TaskRunner 105-E3845

CPU Intel Atom E3845 Quad Core processor, 1.91GHz

Chipset

integrated in Intel E3845
resolution up to 1920x1080

Memory

4GB DDR3L 1333/1066MHz (8GB max.)
1x 204-pin SO-DIMM

Display Options

Dual independent displays
HDMI and DVI
HDMI and VGA (via DVI-I)

I/O Interfaces Front


1x USB2.0/1x USB3.0 ports
2x serial port (RS232/422/485)
1x external Cfast socket
1x SIM card holder
2x GbE LAN ports (Intel I1210IT)
1x DVI-I
ATX power on/off switch
1x remote power on/off switch
1x 2-pin DC input (9-30V DC)
HDD access/power status/battery low LEDs

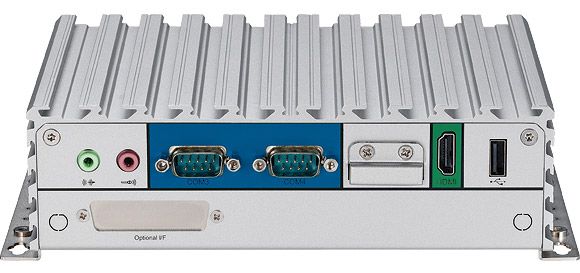

I/O Interfaces Rear


2x serial port (RS232)
1x USB 2.0 ports
1x HDMI port
1x RTC battery
1x mic-in/1x line-out
2x antenna holes

I/O Interfaces Internal

5V, TTL Type
4x GPI
4x GPO

>Back to top

  Storage

HDD/SSD

1x 2.5" SATA HDD drive bay

Flash

1x external CFast socket

>Back to top

  Supported OS

Microsoft

Windows 7 – 8, 10 IoT x64

Linux

Kernel 3.8 and later

>Back to top

  Power Requirements

Input Voltage

9 - 30V DC on-board power support

Power Supply

AC to DC power adapter, 12V (60W)

Power Consumption

Full loading mode ca. ca. 20W
Standby mode ca. 10W

Connector

3-pin Terminal Block

>Back to top

  Housing and Mounting

Case

Aluminum and Metal Chassis with fanless design

Weight

Gross Weight: 2.1kg

Dimensions

185x 131x 54mm

Mounting

Wall Mount

>Back to top

  Environment

Operating Temp.

−5°C – 55°C

Storage Temp.

−30°C – 85°C

Ambient Humidity

10-95% non condensing

>Back to top

  Standards

Certifications


CE
FCC Class A
UL/ cUL

Shock Protection


HDD: 20G, half sine, 11ms, IEC60068-2-27
CFast: 50G, half sine, 11ms, IEC60068-2-27

Vibration Protection w/HDD


Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration Protection w/CFast & SSD


Random: 2Grms @ 5~500 Hz, IEC60068-2-64
Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

3616

TaskRunner 105-E3845 (NISE 105-E3845)

>Back to top

  Options

Mass Storage device

  • 2.5 HDD SATA
  • 2.5 SSD SATA
  • CFast Card

>Back to top

  Packaging

Packing list

TaskRunner Embedded System
(incl. Atom E3845 1.91GHz, 4GB DDR3L RAM)
Power Adapter, Driver CD, English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
