Powered by the late generation of Intel® Celeron™ processor J1900 (also known as "Bay Trail-I"), the TaskRunner 105U industrial fanless computer features the 64-Bit Instruction Set and Intel® HD Graphics. Large DDR3L memory, plenty of high-speed interfaces as well as its small mechanical design well suited for compact performance applications, such as Factory Automation Applications, Network Applications and Communication Applications. Windows 7/10 IoT and Linux are supported.
Computing Performance
The Intel® Celeron™ CPUs (4 cores at 2.42GHz) combined with up to 8GB high speed DDR3L memory assembles an affordable system for compact demanding industrial applications.
Graphic Performance
The on-processor graphic unit provides 1x HDMI port and 1x DVI-I port enabling up to 2 independent displays simultaneously. Two digital or one digital plus one analogous display (VGA via DVI-I) are possible.
Rich Connectivity and Expansion
The connectivity includes 2x GbE LAN ports, 4x COM ports, 1x M.2 socket, 1x USB 3.0 and 2x USB 2.0. One integrated Mini-PCIe slot can accommodate WLAN or 3G/4G-Modem card (with SIM card holder). Power input 9-30V DC, wide temperature operating range and ruggerized compact aluminium housing recommend it for deploying in harsh industrial environments.
CPU Intel Celeron J1900 Quad Core processor, 2.42GHz
Chipset
integrated in Intel J1900 resolution up to 1920x1080
Memory
8GB DDR3L 1333/1066MHz 1x 204-pin SO-DIMM
Display Options
Dual independent displays HDMI and DVI-D HDMI and VGA (via DVI-I)
I/O Interfaces Front
2x USB2.0 / 1x USB3.0 ports 1x serial port (RS232/422/485) 2x GbE LAN ports (Intel I1210-AT) 1x HDMI port ATX power on/off switch 1x 2-pin DC input (9-30V DC) HDD access/power status/battery low LEDs

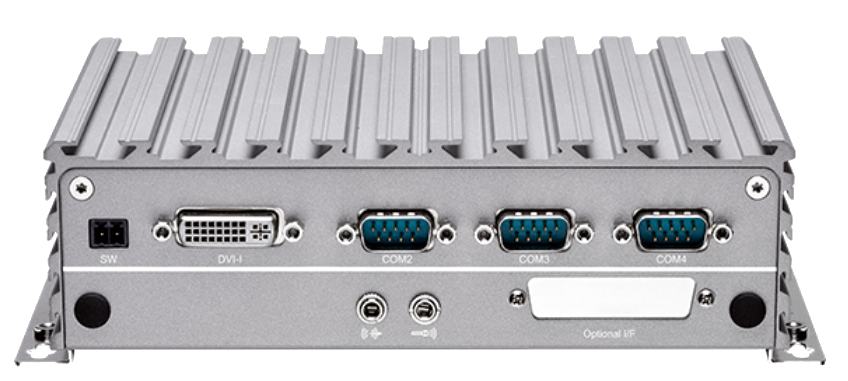

I/O Interfaces Rear
1x serial port (RS232/422/485), 2x serial port (RS232) 1x DVI-I connector 1x mic-in/1x line-out 1x remote power on/off switch 2x antenna holes 1x Optional I/F for optional mini-PCIe Wi-Fi/4G
Click on the thumbnails to enlarge them …
