>visionsystems.de/TaskRunner 3600CE Plus (NISE 3600CE) (3649)


Main Features

  • Intel Core i7 3.8GHz fanless design
  • Intel Core i5 3.6GHz / i3 2.7GHz alternative
  • Intel H310C Chipset
  • 8GB DDR4 Memory (max. 32GB)
  • 2x GigaLAN / 4x USB 3.0 / 2x USB 2.0
  • HDMI, VGA, 2x Display Port
  • 5x RS232, 1x RS232/422/485
  • HDD Space 1x or 2x
  • external M.2 Key B socket
  • PCIex4 Expansion Slot
  • Power Input 12V-30V


TaskRunner 3600CE Plus (NISE 3600CE) New




TaskRunner 3600CE Plus (NISE 3600CE)

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging | Download |

|

  More Pictures

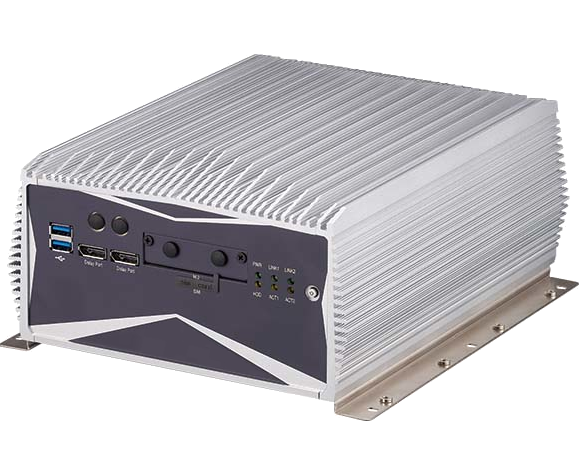

TaskRunner 3600CE Plus (NISE 3600CE)
Click on the thumbnails to enlarge them …

>Back to top

  Overview

With 6th to 9th generation Intel® Core™ i5/i7/i3 processor the TaskRunner 3600CE (NISE 3600CE) fanless computer features Intel® Turbo Boost and Hyper-Threading technologies. Versatile graphics, large DDR4 memory, plenty of high-speed interfaces as well as its innovative mechanical design well suited for high performance applications, such as Auto Optical Inspection, Machinery Automation, Surveillance or Image Processing equipments and Healthcare industry. Windows 7/10 and Linux are supported.

Computing Performance

The Intel® Core™ i7 CPUs (8 cores at 1.8GHz, Turbo Boost at 3.8GHz) combined with up to 32GB high speed DDR4 memory assemble an affordable powerhouse for high demanding industrial applications.
The Intel® Core™ i5 CPU (6 cores at 2.1GHz, Turbo Boost at 3.5GHz) constitute a powerful but cost-effective variation. Also available Intel® Core™ i3 CPUs (2 cores / 4 threads at 2.7GHz) are another option for special purposes.

Graphic Performance

The on-processor graphic unit supports 2x display ports, 1x VGA port plus 1x HDMI port enabling up to 3 independent displays simultaneously. On chip GPU also delivers graphics performance significantly faster than the previous generation making it the ideal centerpiece to power hungry graphical and image processing applications.

Rich Connectivity and Expansion

The connectivity includes 2x Intel® GbE LAN ports, 6x COM ports, and 1x (front accessible) M.2 socket; the GbE LAN ports support WoL function. Fast serial interfaces like 4x USB 3.0 and 2x USB 2.0 plus 1x or 2x PCI or PCIe slots facilitate the flexible expansion of system's capabilities. One Integrated Mini-PCIe slot can accommodate WLAN or 4G-Modem cards.
12-30V DC input power supply, wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

  • Intel Core i7-9700TE Processor
    (12M cache, 3.8GHz/1.8)
  • Intel Core i5-8500T Processor
    (9M cache, 3.5GHz/2.1)
  • Intel Core i3-6100TE Processor
    (4M cache, 2.7GHz)

Video resolution up to 4096 x 2304


Chipset

Intel H310C PCH

Memory

8GB DDR4 2133/2400/2666MHz (32GB max.)
2x 260-pin SO-DIMM

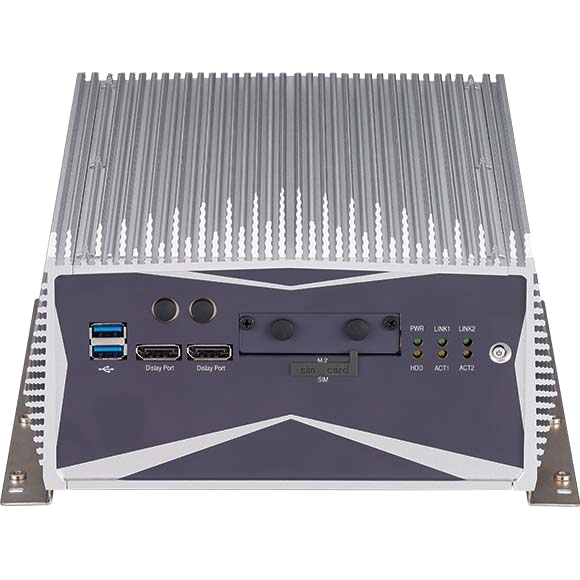

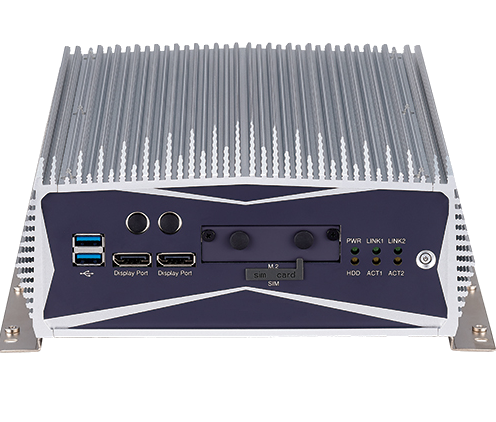

I/O Interface Front


2x USB 3.0 ports
2x Display Port
M.2 socket
2x antenna holes
ATX power on/off switch
HDD access/power/LAN status LEDs

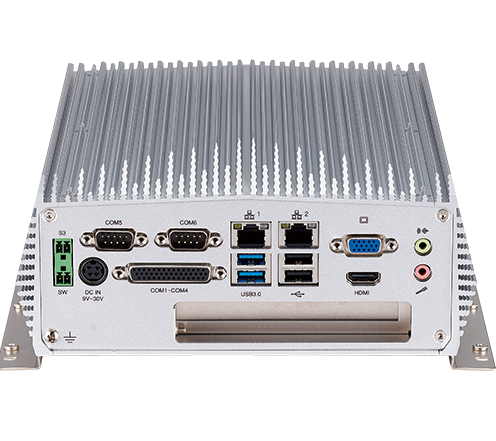

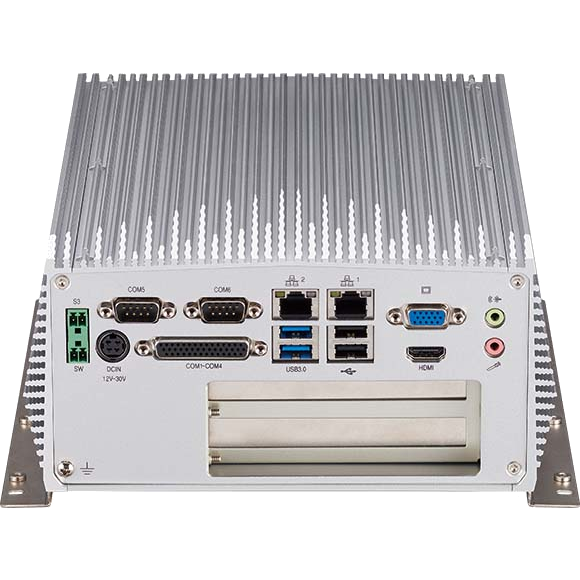

I/O Interface Rear


2x GbE LAN ports (Intel Chipset)
2x USB 3.0 ports
2x USB 2.0 ports
1x DB15 VGA port
1x HDMI port
1x DB44 serial port for 4x RS232 (COM2: RS232/422/485)
2x DB9 serial port RS232
1x speaker-out
1x mic-in
12-30V DC power input
2-pin remote power on/off switch

>Back to top

  Storage

HDD/SSD

  • 1x 2.5" SATA HDD drive bay (TaskRunner 3600CE)
  • 2x 2.5" SATA HDD drive bay (TaskRunner 3600CE2, 3600CP2)

Flash

1x external M.2 socket, Key B

>Back to top

  Expansion Options

Expansion slot

1x PCIex4 (TaskRunner 3600CE)
2x PCIex4 (TaskRunner 3600CE2)
1x PCIex4 + 1xPCI (TaskRunner 3600CP2E)
2x PCI (TaskRunner 3600CP2)

>Back to top

  Supported OS

Microsoft

Windows 7 – 10

Linux

Kernel 3.x

>Back to top

  Power Requirements

Input Voltage

12V - 30V DC on-board power support

Power Supply

AC to DC power adapter, 120W (24V DC)

Connector

4 Pin snap and lock DC power connector

>Back to top

  Housing and Mounting

Case

Aluminum and Metal Chassis with fanless design

Weight

Gross Weight: 6.9kg

Dimensions

  • 215x 272x 93mm (TaskRunner 3600CE)
  • 215x 272x 114mm (TaskRunner 3600CE2, 3600CP2E, 3600CP2)

Mounting

Wall Mount

>Back to top

  Environment

Operating Temp.

−5°C - 50°C

Storage Temp.

−20°C – 80°C

Ambient Humidity

10-95% non condensing

>Back to top

  Standards

Certifications

CE, FCC Class A, UL

Shock Protection

  • HDD: 20G, half sine, 11ms, IEC60068-2-2
  • M.2: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection with HDD condition

  • Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
  • Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration protection with SSD & M.2 condition

  • Random: 2Grms @ 5~500 Hz, IEC60068-2-64
  • Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

3647

TaskRunner 3600CE (NISE 3600CE) (Core i5, one PCIe x4 expansion slot)

3649

TaskRunner 3600CE Plus (NISE 3600CE) (Core i7, one PCIe x4 expansion slot)

3655

TaskRunner 3600CE ECO (NISE 3600CE) (Core i3, one PCIe x4 expansion slot)

3653

TaskRunner 3600CE2 (NISE 3600CE2) (Core i5, two PCIe x4 expansion slots)

3651

TaskRunner 3600CP2 (NISE 3600CP2) (Core i7, two PCI expansion slots)

>Back to top

  Options

Mass Storage device

  • 2.5" HDD SATA
  • 2.5" SSD SATA
  • M.2 Card

>Back to top

  Packaging

Packing list

  • TaskRunner Embedded System
  • (incl. Intel Core i7 / Core i5, 8GB DDR3 RAM)
  • Power Adapter, Driver CD, English documentation

>Back to top

Download


 (VGA-driver Windows)
 (Windows 7, 8.1, 10)
 (Windows 7, 8.1, 10)
 (Windows 7, 8.1, 10)
 (intel Management Engine)
 (intel Rapid Storage)
 (all Models)
 (concentrated information)
>Back to top
