>visionsystems.de/VS-Kerberos M (291)


Main Features

  • Intel Pentium-M 1.6GHz fanless
  • Onboard Intel 855GME chipset, CRT
  • 512 MB SDRAM, SoDIMM 1GB max.
  • 2 x IDE, 1 x CF socket
  • 1 x GigaLAN, 4 x USB 2.0
  • 1 x RS232, 1 x RS232/422/485
  • PC-Chassis 3 Slot PCI, 70W
  • PCI BUS, 2 x PCI Slots free for additional cards
  • Variations possible!


VS-Kerberos M




VS-Kerberos M

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Power Requirements | Housing and Mounting | Environmental Data | Supported OS | Warranty | Ordering Information | Packaging |

|

  More Pictures

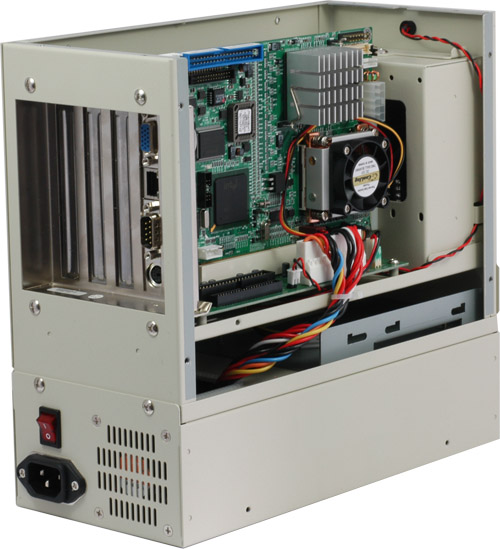

VS-Kerberos M
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Classic, modular and expandable system, designed for 24/7 operation in harsh environments.

Connectivity and Expansion

The connectivity includes 1x GbE LAN ports, 2x COM ports, and 1x CF socket. Fast serial interfaces like USB 2.0 and PCI slots facilitate the flexible expansion of system's capabilities.
95-240V AC input power supply, wide operating temperature range and ruggedized compact steel housing recommend it for deploying in harsh industrial environments.
Variations possible!

  System

CPU

Intel Pentium-M 1.6GHz

Chipset

Intel 855GME + ICH4

Memory

512 MB DDR, 1 SoDIMM 1GB max.

I/O Interfaces

1x RS232 (optional LPT), 1x RS232/422/485
4x USB 2.0 (optional)
1 x LAN (10/100/1000 Base-T, RTL8110s)
1x PS/2 connector
1x VGA

BIOS

AMI Flash BIOS, incl. VGA/LCD and LAN boot-ROM

Watchdog

Programmable watchdog timer

>Back to top

  Storage

HDD/SSD

1 x IDE / PATA

Flash

Compact Flash Socket

>Back to top

  Expansion Options

Expansion slots

2x PCI Slots

>Back to top

  Power Requirements

Input Voltage

95V AC – 240V AC

Power Supply

Internal power adapter, 70W

Power consumption

29W

>Back to top

  Housing and Mounting

Case

heavy-duty steel

Dimension

96mm x 214mm x 215mm

Mounting

Wall-Mount
Table-mount

>Back to top

  Environmental Data

Operating Temp.

0°-60°C

Storage Temp.

-20°-80°C

>Back to top

  Supported OS

Windows

Windows 2K, XP,Xpe, CE

Linux

Kernel 2.6

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

291

VS-Kerberos M

>Back to top

  Packaging

Packing list

Complete bootable System
Power cord
Two wallmount rails
Driver CD, English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
