>visionsystems.de/VScom 100L UPCI (4464)


Main Features

  • Universal PCI 3.3 / 5.0V
  • 1x RS232
  • UART 16550 (16 Byte FIFO)
  • Speed 921 kbps
  • PCI Plug and Play
  • Drivers for Windows 95 to 7/2008 R2
  • Software compatibel with DOS, Windows 3.11, OS/2, Linux and div. Unix

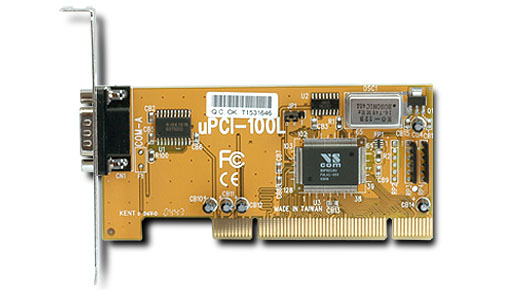

VScom 100L UPCI, a 1 Port RS232 PCI card, 16C550 UART




VScom 100L UPCI

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | Performance Features | Operating Systems | Ordering Information | Packaging | Download |

|

  More Pictures

VScom 100L UPCI, a 1 Port RS232 PCI card, 16C550 UART
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The L-series is an economic solution for standard applications. The serial port is based on a 16C550A UART with 16 byte FIFO. The eightfold maximum speed allows some irregular transmission rates.

  Hardware Specifications

Ports

1x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)

UART

1x 16550 (16 Byte FIFO)

Address

Plug and Play

Interrupts

PCI Plug and Play, only one interrupt/card

Speed

max. 921 kbps

Bus interface

Universal PCI 3.3V / 5.0V

Connectors

1x DB9 male (COM)

Size

L120mm x H89mm

Temperature

0°C - 55°C

>Back to top

  Performance Features

FIFO

FIFO size 16Byte
adjustable Rx 1,4,8,14Bytes Tx 1 up to 16Bytes

Handshake

RTS / CTS
Xon / Xoff

Speed

1bps up to 921kbps
Multiplication factor for legacy applications

UART

UART emulation of 8250 and 16450

>Back to top

  Operating Systems

Windows 2000 up to 7

VScom high performance serial driver, x86 and x64 Editions

Server 2000 to 2008 R2

VScom high performance serial driver, x86 and x64 Editions

Windows NT 4.0

VScom high performance serial driver
control panel applet

Windows 95, 98, SE, ME

VScom high performance serial driver

DOS

virtuell address driver and compatibility tools
real DOS Com port emulation

OS/2

Supported by COM16 driver in recent system releases
Third party serial driver SIO.SYS available

Linux

Kernel 2.6 and up: built-in support
Previous kernel: VScom high performance real tty driver

div.UNIX

configuration instructions

>Back to top

  Ordering Information

4464

VScom 100L UPCI

>Back to top

  Packaging

Packing list

VScom 100L UPCI card
CD and English documentation

>Back to top

Download


 (Release 3.3.5.0 (January 29 2013))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007), PnP)
 (Release 3.1.2 (July 20 2007))
 (Manual for L-series boards, Edition December 2010)
