Main Features

  • 2 x RS232 ports, ESD and surge protected
  • 500 kbps max. baud rate for fast data transfer
  • 256-Byte FIFO and on-chip H/W, S/W flow control
  • Compatible with PCIex x1, Plug and Play
  • Low Profile form factor, STD and LP brackets
  • Wide temp range -40° to +65°C
  • Drivers for Windows XP / 7 / 8 / 10 and Linux
  • Adapter cable 2 x DB9M included


VScom 200E v4 PCIex, a 2 Port RS232 PCI Express x1card, 16C850 UART




VScom 200E v4 PCIex
(PCIex-200E)

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | High Performance Features | Operating Systems | Dimensions | Standards | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Packaging | Download |

|

  More Pictures

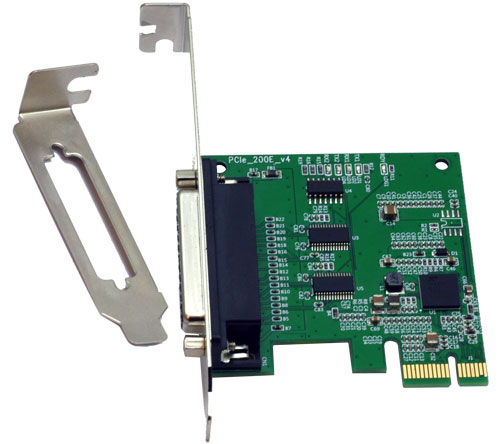

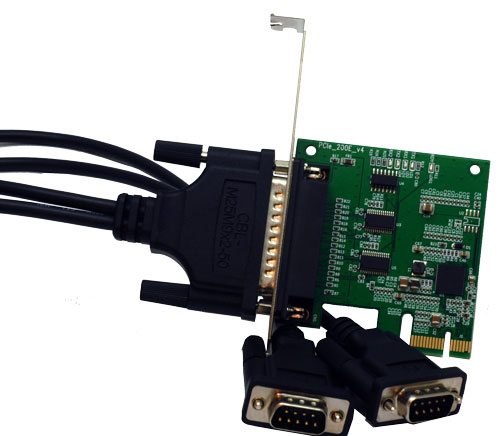

VScom 200E v4 PCIex, a 2 Port RS232 PCI Express x1card, 16C850 UART
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The VScom 200E PCIex is a smart 2-ports PCI Express serial card, designed for industrial automation and POS/ATM applications. VScom 200E PCIex runs with all major operating systems. The serial ports equipped with 256 byte FIFOs support data rates up to 500kbps and use full modem control signals for compatibility with a wide range of serial devices. The ports also allow every non-standard bitrate up to 500kbps. On-chip s/w and h/w flow control ensure quick reaction and so error free data transmission at high baud rates. Serial ports are ESD and surge protected.

The board can be plugged into Standard Height and Low-Profile PC cases. Mounted is the standard bracket, Low Profile is placed in the box. Also included is the adapter cable DB25F to 2 x DB9M (Pins and signals like on a PC).

  Hardware Specifications

Ports

2x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)

UART

2x 16C850 (256 Byte FIFO, ON-Chip HW-/SW-Flow Control)

LED

LED for TxD and RxD on each port

Address

Plug and Play

Interrupts

PCI Plug and Play, only one interrupt per card

Speed

50bps – 500 kbps all standard bitrates available
also non-standard bitrates possible (e.g. 500kbps)

Bus interface

PCI Express x1

Connectors

1x DB25F, adapter cable 2 x DB9 male

Low Profile

Extra bracket added for Low Profile case mounting

Temperature

−40°C – +65°C

>Back to top

  High Performance Features

FIFO

adjustable FIFO length, 1 up to 256 Bytes
separate adjustable Rx and Tx

Handshake

RTS / CTS
DTR / DSR
Xon / Xoff
all handshake automatic on Chip

Speed

50 bps up to 500 kbps
all Baudrates possible

Access

high speed access via Memory

UART

UART emulation 16850

>Back to top

  Operating Systems

Windows 2000 up to 10

High performance serial driver, x86 and x64 Editions

Linux

Kernel 3.0 and up: built-in support

>Back to top

  Dimensions

Card Size

L65mm × H67mm

Card Weight

40g

Cable Weight

150g

Box Size

L165mm × W153mm × H62mm

Box Weight

210g

>Back to top

  Standards

Declarations

CE, FCC

EMI

  • EN 55022 Class B
  • 47 CFR FCC Part 15 Subpart B

EMS (EN 55024)

  • EN 61000-4-3: Radiated RFI
  • EN 61000-4-4: Electrical Fast Transient
  • EN 61000-4-5: Surge
  • EN 61000-4-6: Induced RFI
  • EN 61000-4-8: Power Frequency Magnetic Field
  • EN 61000-4-11: Power supply dips

ESD

EN 61000-4-2 4kV contact 8kV air for Serial Ports

>Back to top

  MTBF (Mean Time Between Failures)

MTBF

available soon

Standard

Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

4512

Vscom 200E v4 PCIex

>Back to top

  Packaging

Packing list

VScom 200E v4 PCIex card

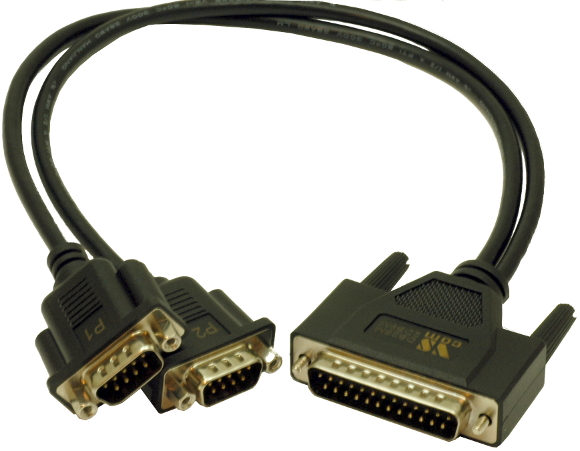

Adapter cable 2 Ports RS232 DSUB 9 male
Extra bracket for Low Profile form factor

>Back to top

Download


 (Version 5.1.0.0)
 (Version 5.1.0.0)
 (Version 5.1.0.0)
