>visionsystems.de/VScom 430L SP PCI (471)


Main Features

  • 4x RS232
  • UART 16550 (16 Byte FIFO)
  • Speed 460 kbps
  • 3 x LPT bidirectional
  • PCI Plug and Play
  • IRQ Interrupt sharing, only one Interrupt per card
  • Drivers for Windows 95 to 7/2008 R2
  • Software compatible with DOS, Windows 3.11, OS/2, Linux and div. Unix

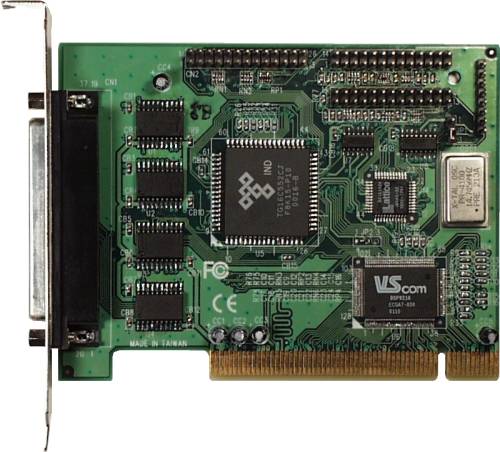

VScom 430L SP PCI, a 4 Port RS232 PCI card, 16C550 UART, 3 parallel ports




VScom 430L SP PCI

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | Performance Features | Operating Systems | Ordering Information | Packaging | Download |

|

  More Pictures

VScom 430L SP PCI, a 4 Port RS232 PCI card, 16C550 UART, 3 parallel ports
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The L-series is an economic solution for standard applications. The serial ports are based on a 16C550A UART with 16 byte FIFO. The eightfold maximum speed allows some irregular transmission rates.
The bi-directional parallel port is best for attaching printers and some other devices, such as ZIP-drives.

  Hardware Specifications

Ports

4x RS232, (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)
3xLPT bidirectional

UART

4x 16550 (16 Byte FIFO)

Address

Plug and Play

Interrupts

PCI Plug and Play, only one interrupt/card

Speed

Max. 460.8 kbps

Bus interface

PCI

Connectors

1 x DB37 female
3 x LPT with seperate Slot

Size

L120mm x H89mm

Temperature

0°C - 55°C

>Back to top

  Performance Features

FIFO

FIFO size 16Byte
adjustable Rx 1,4,8,14Bytes Tx 1 up to 16Bytes

Handshake

RTS / CTS
Xon / Xoff

Speed

1bps up to 921kbps
Multiplication factor for legacy applications

UART

UART emulation of 8250 and 16450

>Back to top

  Operating Systems

WIN95, WIN98, ME

VScom high performance serial driver

VScom high performance serial driver

VScom high performance serial driver
control panel applet

WIN 2000, XP, Vista

VScom high performance serial driver

Win 2003 Server

VScom high performance serial driver
parallel driver

DOS

virtuell address driver and compatibility tools
real DOS Com port emulation

OS/2

Supported by COM16 driver in recent system releases
Third party serial driver SIO.SYS available

Linux

Kernel 2.6 and up: built-in support
Previous kernel: VScom high performance real tty driver

div.UNIX

configuration instructions

>Back to top

  Ordering Information

471

VScom 430L SP PCI

>Back to top

  Packaging

Packing list

VScom 430L SP PCI card
cable DSUB 37 to 4 x RS232 DSUB 9 male
3 Brackets with one LPT Port each
CD, English documentation

>Back to top

Download


 (Release 3.3.5.0 (January 29 2013))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007), PnP)
 (Release 3.1.2 (July 20 2007))
 (Pinout DB37, DB25)
