Main Features

  • Phased Out, no longer available
  • PCI Express x1
  • 8x RS232
  • 16C950 (128 Byte FIFO)
  • 921 kbps
  • PCI Plug and Play
  • Drivers for Windows 2000 to 7/2008R2
  • Use connection cable OPT8D-M or OPT8C


VScom 800E PCIex, a 8 Port RS232 PCI Express x1 card, 16C950 UART




VScom 800E PCIex
(PCIex-800E, Replaced by CP-168EL-A PCIe)

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | High Performance Features | Operating Systems | Ordering Information | Options | Packaging | Download |

|

  More Pictures

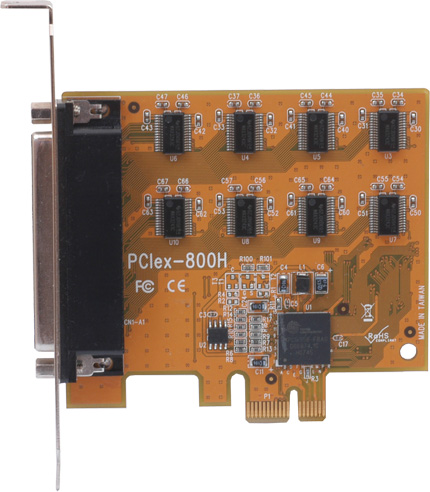

VScom 800E PCIex, a 8 Port RS232 PCI Express x1 card, 16C950 UART
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The VScom 800E PCIex is an add-on card for PCI Express, providing eight serial ports. These high speed serial ports with their 128 byte long FIFO are best for high speed communication, even in heavy loaded systems. Many unique features reduce the system load. They also allow very unusual speed settings such as 500.000bps.

Read the News Article…

  Hardware Specifications

Ports

8x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)

UART

8x 16C950 (128 Byte FIFO)

Address

Plug and Play

Interrupts

PCI Plug and Play, only one interrupt per card

Speed

max. 921 kbps

Bus interface

PCI Express x1

Connectors

1x DB62, optional adapter cable or box

Temperature

0°C - 55°C

>Back to top

  High Performance Features

FIFO

adjustable FIFO length, 1 up to 128 Bytes
separate adjustable Rx and Tx

Handshake

RTS / CTS
DTR / DSR
Xon / Xoff
all handshake automatic on Chip

Speed

1 bps up to 921 kbps
unusual Baudrates possible
Multiplication factor for legacy applications

Access

high speed access via Memory

UART

UART emulation of 8250 up to 16850

>Back to top

  Operating Systems

Windows XP up to 7

VScom high performance serial driver, x86 and x64 Editions

Server 2003 up to 2008 R2

VScom high performance serial driver, x86 and x64 Editions

Linux

Kernel 2.6.35 and up: built-in support

>Back to top

  Ordering Information

4504

VScom 800E PCIex

>Back to top

  Options

705

OPT8D-S connection cable DB 62 on 8 x DSUB 9 male (with screws)

404

OPT8D-M connection cable DB 62 on 8 x DSUB 9 male (with nuts)

706

OPT8C connection cable DB 62 on 8 x DSUB 25

704

OPT8M9 connection box DB 62 with 8 x DSUB 9

>Back to top

  Packaging

Packing list

VScom 800E PCIex card
CD, English documentation

>Back to top

Download


 (Release 3.3.5.0 (January 29 2013))
 (Release 3.3.0.12 (January 7 2009))
 (Release 3.3.0.12 (January 7 2009))
 (Manual for PCIex E-series boards, Edition February 2010)
>Back to top
