>visionsystems.de/USB-4COM RJ45 (626)


Main Features

  • USB 2.0 to 4 x RS232 ports
  • High-Speed serial ports 460.8kbps
  • Port Expansion via USB 2.0 High Speed
  • Driver for Windows, Linux, Mac OS X
  • LEDs for Power/Ready and TxD/RxD activity
  • ESD protection on USB and serial ports
  • Bus and Self powered
  • Ruggedized metal housing
  • DIN-Rail and wall mount options
  • Wide range of operating temperatures


VScom USB-4COM RJ45, a quad port USB-to-Serial RS232 adapter New




USB-4COM RJ45

Quick Link: | Main Features | More Pictures | Overview | USB Interface | Serial Interface | Serial Port Expansion | Software | Power Requirement | Housing and Mounting | Environmental Data | Standards | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Options | Packaging | Download |

|

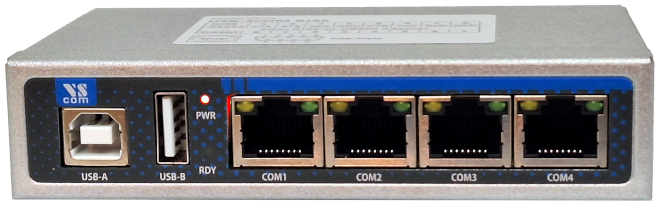

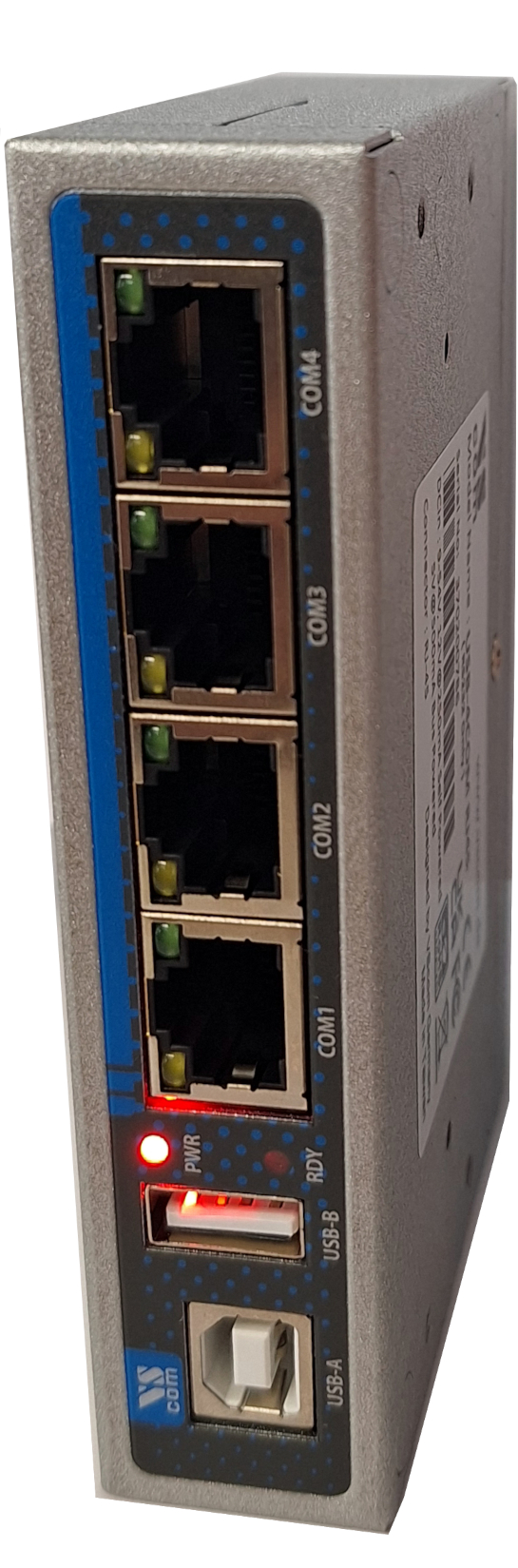

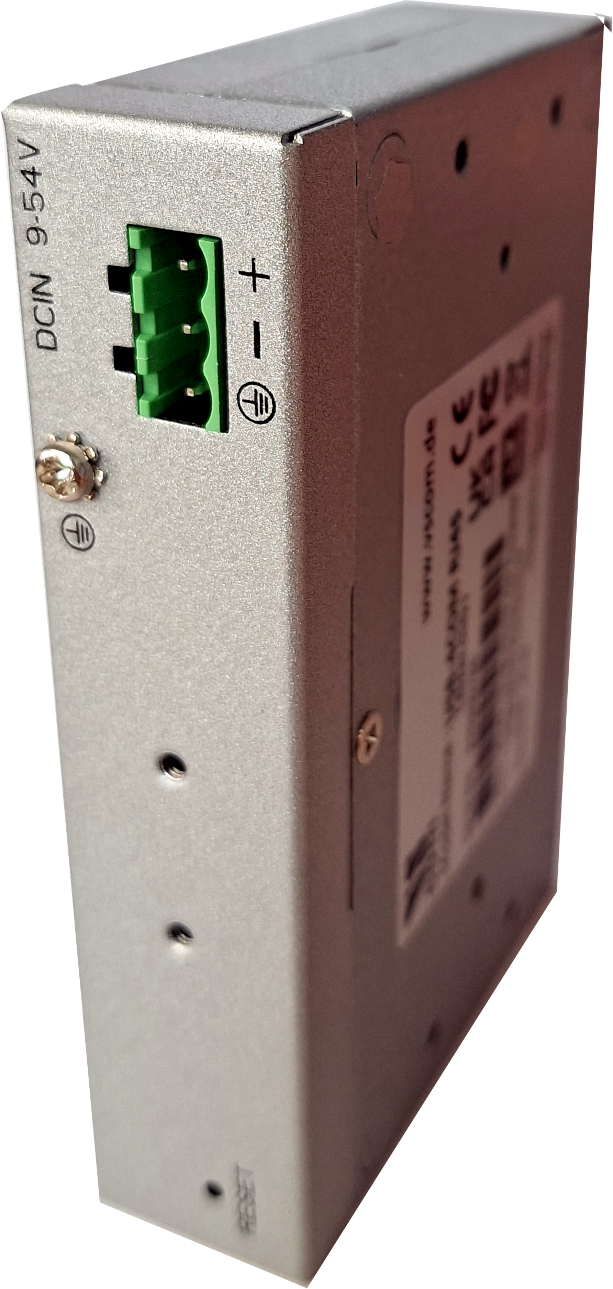

  More Pictures

VScom USB-4COM RJ45, a quad port USB-to-Serial RS232 adapter
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The USB-4COM RJ45 provides easy serial port expansion over USB 2.0 connecting to high speed RS232 devices. All USB-xCOM converters are fully ESD and surge protected and accommodated in a small metal case. The USB-4COM RJ45 is bus and self powered at users choice. Furthermore, it can operate across a large range of temperatures to cope with harsh operating conditions. Lastly, DIN-Rail and wall-mounting options are available.

Easy Serial Ports Configuration

The serial ports support 7 signals of RS232 protocol. LEDs for PWR, RDY and TxD/RxD for each port clearly show the activity status for the user. Com Port drivers are available for Windows, Linux and Mac OS X. "USBCOM Configuration Utility" allows easy access to special Windows driver options to optimise settings and performance.

High Speed Rates and ESD Protection

USB 2.0 High Speed connection allows serial data rates of up to 460.8kbps. Every non-standard bitrate (e.g. 31250bps for MIDI) can easily be set up. USB-xCOM systems are fully ESD protected at the USB and serial port interfaces.

  USB Interface

USB-Input

USB 2.0 High Speed, USB 1.1 compliant

Connector

USB type B

Circuits

FTDI FT4232H
Genesys GL850G

>Back to top

  Serial Interface

No. of Ports/Type

4 x RS232

Connector

RJ45 (8P8C) 8 pin, uses customers Cat5 cables
RJ45-TO-DB9M Adapters to change to DB9 wiring available

Protection

16kV ESD surge protection

Signals

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Data Bits

7, 8

Stop Bits

1, 2

Parity

None, Even, Odd, Mark, Space

Flow Control

RTS/CTS, XON/XOFF

Baudrate

180bps - 460.8/500kbps

LEDs

TxD/RxD for each port

>Back to top

  Serial Port Expansion

Connector

USB 2.0 High Speed type A, 500mA @5V at front side

Expansion Ports

connect USB-xCOM RJ45 to add more serial ports

>Back to top

  Software

Drivers

  • Windows 2000 to Windows 10 (x86 and x64)
  • Windows Server 2000 to 2016 (x86 and x64)
  • Linux (Kernel 3.4 and later built-in)
  • Mac OS X

Installation

The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows).

>Back to top

  Power Requirement

Input Voltage

  • 5V (USB)
  • 9 – 54V DCin

Power Consumption

  • Bus-powered: 5V 300mA via USB
  • Self-powered: DCin 9 – 54V, 2W + 3W for Port Expansion

Port Expansion

DCin supply is compulsory to support Port Expansion.

Connector

  • Bus powered: USB Type B, no external supply
  • Self powered: 3-Pin Terminal Block

>Back to top

  Housing and Mounting

Case

0.8mm sheet metal

Weight

0.25kg, w/h box 0.3kg

Dimensions

115×73×25 mm³ (W×L×H)

Packaged

150×107×48 mm³

Mounting

Desktop use

  • DIN-Rail (optional)
  • Wall mount (optional)

>Back to top

  Environmental Data

Operating Temp

−25°C - 75°C

Storage Temp

−30°C – 85°C

Ambient Humidity

5-95% non condensing

>Back to top

  Standards

Declarations

CE, FCC

EMI

  • EN 55022 Class B
  • 47 CFR FCC Part 15 Subpart B

EMS (EN 55024)

  • EN 61000-4-3: Radiated RFI
  • EN 61000-4-4: Electrical Fast Transient
  • EN 61000-4-5: Surge
  • EN 61000-4-6: Induced RFI
  • EN 61000-4-8: Power Frequency Magnetic Field
  • EN 61000-4-11: Power supply dips

ESD

EN 61000-4-2 4kV contact 8kV air for

  • Serial Ports
  • USB
  • DCin Power connector

>Back to top

  MTBF (Mean Time Between Failures)

MTBF

available soon

Standard

Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

626

USB-4COM RJ45 (4x RS232)

>Back to top

  Options

6692

DK-NCP DIN-Rail mounting kit (clamp on rear side)

6693

WK-NCP Wallmount kit

6031

DC Power supply adapter 12V @ 1A

6062 x 4

Set 4 pcs Adapter RJ45-TO-DB9M
Cat5 to Dsub9-male, use own Cat5 cables for attaching

>Back to top

  Packaging

Packing list

  • USB-4COM RJ45 device
  • USB 2.0 High-Speed cable
  • Terminal Block for Power Supply
  • 4 rubber feet for table mode

>Back to top

Download


 (v2.12.36.4 July 2021)
 (v2.08.30 July 2013)
 (Windows 2000 to 10)
 (Edition February 2017)
