High Performance expandable Series
Embedded Systems expandable by slots for add-on cards. High computing power with processors from intel.
|
|
|
|
 |

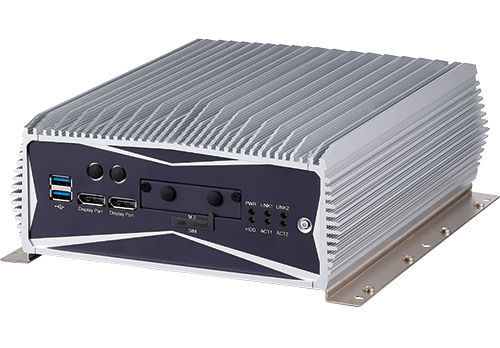

TaskRunner 3800E Plus (NISE 3800E) New
|
|
|
 |
|
Main
Features:   | Intel Core i7 2.4 up to 3.4 GHz fanless design |
| Intel Q170 PCH Chipset |
| 8GB DDR4 Memory |
| 3x GigaLAN / 4x USB 3.0 / 2x USB 2.0 |
| DVI-D, HDMI and Display Port |
| 2x RS232/422/485 |
| HDD Space, mSATA Slot, M.2 Slot |
|
 |
|
 |
|
|
|
|
TaskRunner 3800E (NISE 3800E-H110) New
|
|
|
 |
|
Main
Features: | Intel Core i5 2.3 up to 3.3 GHz fanless design |
| Intel H110 PCH Chipset |
| 8GB DDR4 Memory |
| 2x GigaLAN / 4x USB 3.0 / 2x USB 2.0 |
| DVI-D and HDMI |
| 2x RS232/422/485 |
| HDD Space, mSATA slot |
|
|
|
|
|
|
|
|
|
TaskRunner 3700E (NISE 3700E)
|
|
|
 |
|
Main
Features: | Intel Core i5 2.0 up to 3.0 GHz fanless design |
| Intel Q87 PCH Chipset |
| 4GB DDR3 Memory |
| 3x GigaLAN / 4x USB 3.0 / 4x USB 2.0 |
| DVI-I, DVI-D and HDMI |
| 1x RS232, 2x RS232/422/485 |
| HDD Space |
|
|
|
|
|
|
|
|
|
TaskRunner 3600E (NISE 3600E)
|
|
|
 |
|
Main
Features: | Intel Core i7 3.4GHz fanless design |
| Intel Core i5 3.3GHz alternative |
| Intel QM77 Chipset |
| 4GB DDR3 Memory |
| 2x GigaLAN / 4x USB 3.0 / 2x USB 2.0 |
| DVI-D or VGA + 2x Display port |
| 5x RS232, 1x RS232/422/485 |
|
|
|
|
|
|
|
|
|
TaskRunner 2410E (NISE 2410E)
|
|
|
 |
|
Main
Features: | Atom E3845 Quad Core 1.91GHz fanless |
| 4GB DDR3 |
| 2 x GbE LAN / 4 x USB 2.0 / 1 x USB 3.0 |
| 2 x RS232, 2x RS232/422/485 |
| 1 x DVI-I, 1 x HDMI |
| External SIM card holder |
| Operating temperature: -20°C - 70°C |
|
|
|
|
|
|
|
|
|
EmRunner 5639 New
|
|
|
 |
|
Main
Features: | Intel Celeron N3160 2.24GHz Quad-Core fanless, 4GB DDR3 |
| 2 x GigaLAN / 3 x USB 3.0 / 4 x USB 2.0 |
| VGA / DP / HD triple display |
| 2/4x RS232, 2x RS232/422/485 |
| MiniPCIe Socket + SIM, PCI and PCIe slot |
| CFast Adapter, SSD Space SATA |
| 12-24V DC terminal block, 65VA max. |
|
|
|
|
|
